APPLICATION: For all 2” O.D. Floor shift and new ididit column shift columns with indexed shift lever.

This floor mount was originally designed to work with our mullins 605 power steering conversion box. You may need to modify the floor mount if used with any other 605 power steering conversion box.

1. Lay plate on floorboard. Hand tighten the two lower mount bolts.

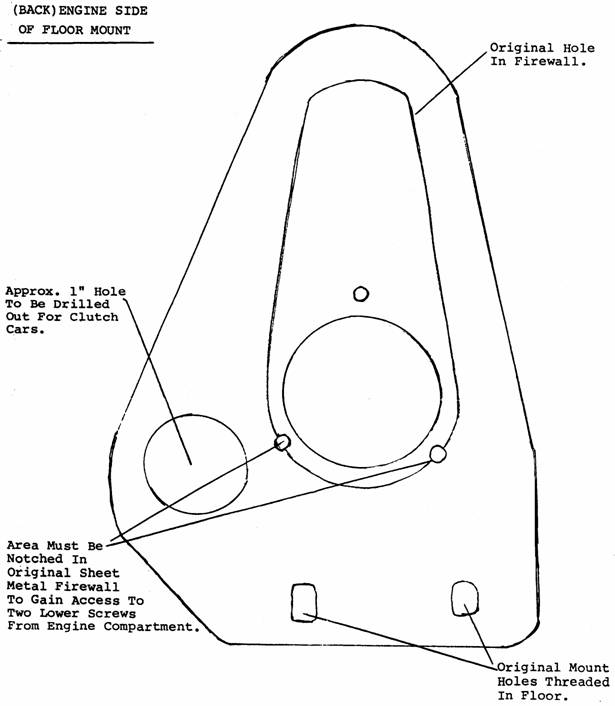

2. Mark two areas from engine side on firewall to be notched for screw access.

3. Remove plate. Notch areas.

4. Remove three screws. Lift mount from plate.

5. Secure plate to floor with two bolts.

6. Loosen set screws on sides of outer mount ring. Remove inner ring and slide up on lower part of column.

7. Slide outer ring on column and attach to inner ring loosely.

8. Slide column through plate hole into rag joint and attach column to dash.

9. Cut carpet around hole in floor (column). Cut three holes in carpet to match holes in plate.

10. Slide mount down column to floor. Install *three screws. Tighten set screws.

*NOTE: Two sets of screws have been supplied to secure ring to plate, depending on thickness of carpet.
