Firestone Intelliride Air Spring Fill System

Firestone IntelliRide™ Systems

Available EXCLUSIVELY from Air Ride Technologies!

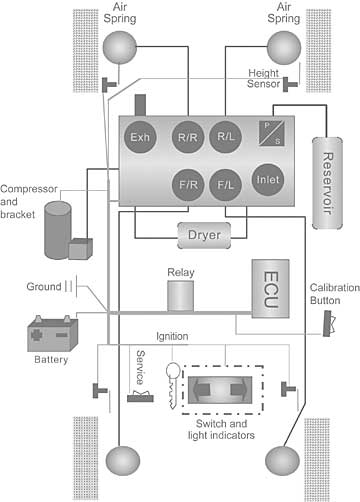

The new IntelliRide electronic leveling system is the missing link for a state-of-the-art air suspension system. By using ride height sensors at all four wheels, the IntelliRide offers the ultimate in convienience and control to keep your vehicle at its proper ride height no matter what the load. The systems includes: Thomas 327 12v compressor, 3 gallon reservoir tank, IntelliRide ECU, airvalve manifold, [4] ride height sensors, and a complete wiring harness with weatherpak connectors. Complete instructions (intelliride_instructions.pdf 1.8Mbytes) are included to make installation as painless as possible.

Since the IntelliRide is ride height sensor based, it is much more accurate than a pressure based system. With a pressure based system load changes can still change your actual ride height…not so with the IntelliRide. The ride height sensors will re-level the vehicle regardless of the load imposed. More technical information

Ride Height sensor based system
Relies on actual ride height measurements to level the vehicle instead of trying to interpret air pressure readings.
3 programmable ride heights
Dropped, Highway, and Full Up heights can be set by the driver. After it is set up, one touch is all you need to go to any of these heights.
Consistent, repeatable ride heights
This means more accurate alignment settings, which leads to more predictable handling and ride quality.
One touch leveling
Hit one button to achieve your desired ride height…forget about remembering air pressures and 4 different buttons for each airspring.
No gauges required
much less equipment to mount in your interior
Air dryer included
no moisture problems in below freezing climates
Weatherpak wiring connectors
no worries about using in a harsh environment

The ECU (electronic control unit) commands the entire suspension setup through an electronic circuit board and software specifically created for air suspensions.

The ECU is a custom design by Firestone to optimize the ride performance of air suspensions.

This system is designed for easy installation and calibration of any air suspension design.
