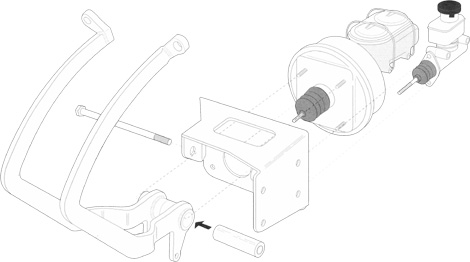

POWER BRAKE & HYDRAULIC CLUTCH ASSEMBLY







You can install this pedal assembly either by welding it to the frame or bolt in by all of the 4 bolts. Make sure that there is no clearance problems between the pedals and transmission, the frame center section and the master cylinder/booster before it is permanently welded. After the bracket is installed the master cylinder/booster assembly and the clutch master cylinder can be installed. We would recommend the -1/4" bore Wilwood or Tilton clutch master cylinder. The last step is to install the clutch master cylinder plastic fluid reservoir; make sure to slightly heat the bottom of the reservoir so it wont crack when expanded and make sure that the O-ring is still in its groove. Now you can bleed the brakes and the clutch.

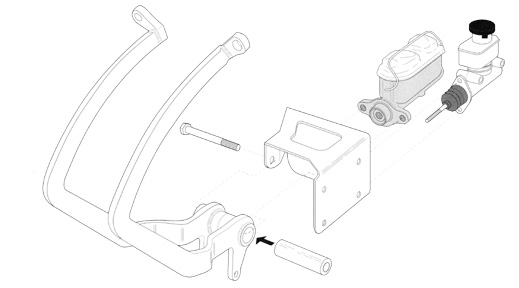

BRAKE & HYDRAULIC CLUTCH ASSEMBLY
